Blohm+Voss
Equipo para el manejo de tubería.
Elevadores, arañas, gafas, llaves manuales, roladoras, combinaciones de llaves de rolado y apriete, bujes maestros, cuñas, collarines.
Elevador VES-SD
SD-350 SD-500-1 SD-500-2 SD-500-3 SD-750
2.3/8“- 9.7/8“ 2.3/8“- 9.7/8“ 10.3/4“-20“ 20“- 30“ 2.3/8“- 9.7/8“
350 tons 500 tons 500 tons 500 tons 750 tons

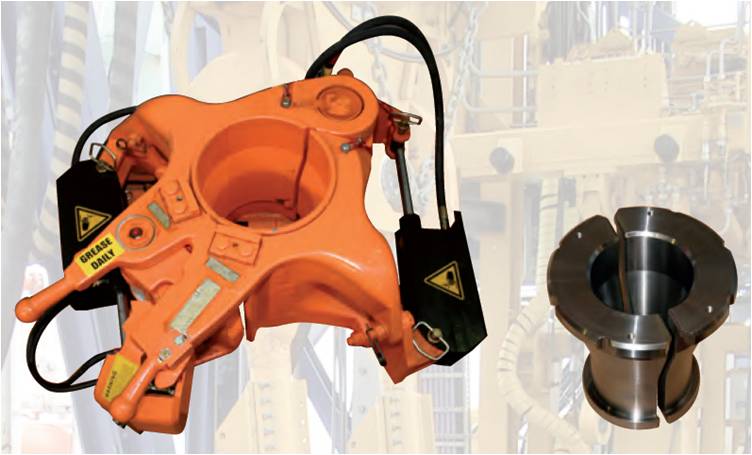

Elevador CL de bisagra, 18° cónico
150 tons 4“ - 5.1/2“ 300 lbs 150-350 tons
tons 3.1/2“ - 5.1/2“ 563 lbs 250-500 tons
350 tons 3.1/2“ - 6.5/8“ 937 lbs 250-500 tons
500 tons 4“ - 6.5/8“ 1399 lbs 500-750 tons

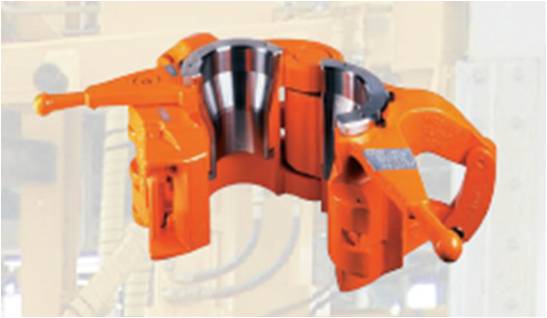

Elevador VES-CL de bisagra cónico
150 tons 2.3/8“ - 5.1/4“ 290 lbs 150-350 tons
250 tons 2.3/8“ - 5.1/4“ 563 lbs 250-500 tons
350 tons 2.3/8“ - 7“ 937 lbs 250-500 tons
500 tons 2.3/8“ - 7“ 1399 lbs 500-750 tons
750 tons 3.1/2“ - 7“ 4037 lbs 750 tons
1000 tons 3.1/2“ - 7“ 4620 lbs 1000 tons

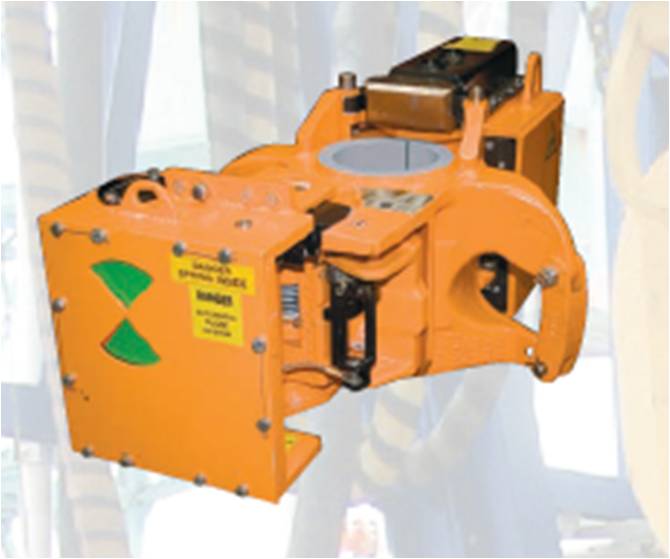

Elevador ACL de bisagra, 18° cónico
ACL-250 612 970-Y-BC 250 tons 3.1/2“ - 5.1/2“ 1090 lbs 250-500 tons
ACL-350 613 970-Y-BC 350 tons 3.1/2“ - 6.5/8“ 1095 lbs 250-500 tons
ACL-500 615 970-Y-BC 500 tons 4“ - 6.5/8“ 2145 lbs 500-750 tons
Elevador VES-ACL de bisagra
VES-ACL 250 612 970-Y 250 tons 2.7/8“ - 5.1/4“ 1080 lbs 250-500 tons
VES-ACL 350 613 970-Y 350 tons 2.7/8“ - 7“ 1090 lbs 250-500 tons
VES-ACL 500 615 970-Y 500 tons 2.7/8“ - 7“ 2134 lbs 500-750 tons
Elevador ABVC de cuñas
ABVC-150 671 600-Y 150 tons 1,315“ - 7“ 1115 lbs 150 - 350 tons
ABVC-200 672 600-Y 200 tons 2.3/8“ - 7.5/8“ 2265 lbs 150 - 350 ton
Elevador ABVC de cuñas con juego de cuñas remotas
ABVC-150-RSS 671 600-Y-RSS 150 tons 1,315“ - 7“ 1115 lbs 150 - 350 tons
ABVC-200-RSS 672 600-Y-RSS 200 tons 2.3/8“ - 7.5/8“ 2265 lbs 150 - 350 tons
Elevador CL con bisagra, 18° cónico
150 tons 2.3/8“ - 3.1/2“ 280 lbs 150-350 tons
150 tons 4“ - 5.1/2“ 290 lbs 150-350 tons
250 tons 3.1/2“ - 5.1/2“ 530 lbs 250-500 tons
350 tons 3.1/2“ - 6.5/8“ 680 lbs 250-500 tons
500 tons 4“ - 6.5/8“ 1310 lbs 500-750 tons
750 tons 2.3/8“ - 8.3/4“ 3940 lbs 750 tons
1000 tons 2.3/8“ - 8.3/4“ 4500 lbs 1000 tons
Elevador VES-CL de bisagra
150 tons 2.3/8“ - 5.1/4“ 290 lbs 150-350 tons
250 tons 2.3/8“ - 5.1/4“ 563 lbs 250-500 tons
350 tons 2.3/8“ - 7“ 684 lbs 250-500 tons
500 tons 2.3/8“ - 7“ 1399 lbs 500-750 tons
750 tons 3.1/2“ - 7“ 4037 lbs 750 tons
1000 tons 2.3/8“ - 7“ 4620 lbs 1000 tons

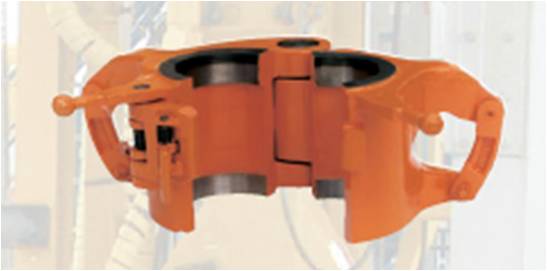

Elevador CLS con bisagra, tipo Collar
100 tons 2.3/8“ - 4.7/8“ 165 lbs 150-350 tons
150 tons 4.7/8“ - 7.1/2“ 320 lbs 150-350 tons
150 tons 7.1/2“ - 9.7/8“ 370 lbs 150-350 tons

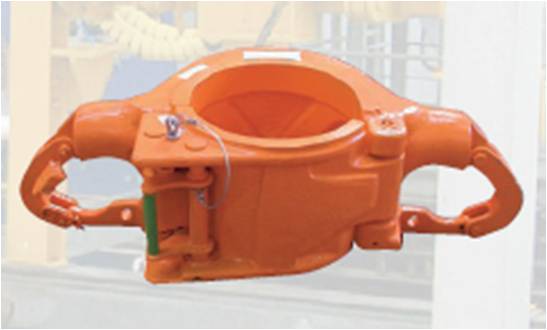

Elevador SDS & SDL puerta lateral, tipo collar
100 tons 2.3/8“ - 4.1/8“ 130 lbs 150-350 tons
100 tons 4“ - 6.3/4“ 250 lbs 150-350 tons
100 tons 6.3/4“ - 9.5/8“ 275 lbs 150-350 tons
150 tons 4.3/8“ - 8“ 230 lbs 150-500 tons
150 tons 8“ - 11“ 285 lbs 150-500 tons
150 tons 11“ - 14“ 350 lbs 150-500 tons
150 tons 13“ - 16“ 610 lbs 150-500 tons
150 tons 18“ - 22“ 650 lbs 150-500 tons
150 tons 24“ - 30“ 880 lbs 150-500 tons
250 tons 6.1/2“ - 9.5/8“ 530 lbs 250-500 tons
250 tons 9.5/8“ - 13.3/8“ 583 lbs 250-500 tons
250 tons 13.3/8“- 18.5/8“ 836 lbs 250-500 tons
250 tons 18.5/8“- 20“ 880 lbs 250-500 tons
250 tons 24“ - 30“ 1410 lbs 250-500 tons
250 tons 30“ - 36“ 1715 lbs 250-500 tons
250 tons 36.1/2“ - 42“ 1736 lbs 250-500 tons
350 tons 6.3/4“ - 9.3/4“ 940 lbs 350-500 tons
350 tons 10.3/4“- 16.3/4“ 1510 lbs 350-500 tons
350 tons 18.5/8“- 21.1/2“ 1395 lbs 350-500 tons
350 tons 24“ - 30“ 2375 lbs 350-500 tons
350 tons 30“ - 36“ 1715 lbs 350-500 tons
500 tons 10.3/4“- 16“ 2161 lbs 350-500 tons

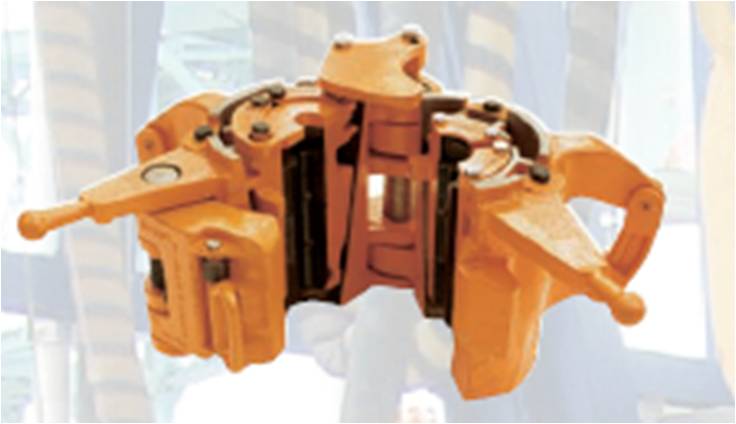

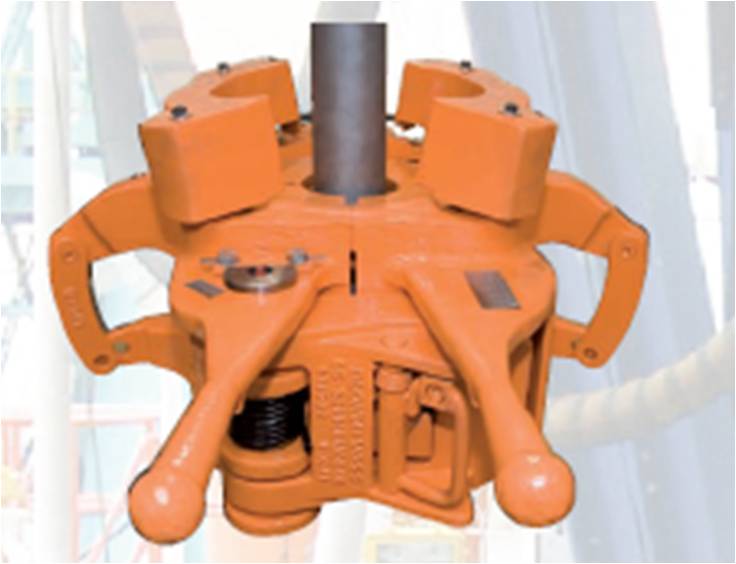

Elevador de cuñas BVC, BVT
BVT-75 670700-Y 1,315“-3 1/2“ 75 ton 150 - 350
BVT-100 671000-Y 1,315“-3 1/2“ 100 ton 150 - 350
BVC-75 670720-Y 1,315“-7“ 75 ton 150 - 350
BVC-100 671100-Y 1,315“-7“ 100 ton 150 - 350
BVC-125 671200-Y 1,315“-7“ 125 ton 150 - 500
BVC-150 671500-Y 1,315“-7“ 150 ton 150 - 500
BVC-200 672000-Y 2 3/8“-7 5/8“ 200 ton 150 - 500
Elevador de cuñas remotas BVC
BVC-75-RSS 670720-Y-RSS 1,315“-7“ 75 ton 150 - 350
BVC-100-RSS 671100-Y-RSS 1,315“-7“ 100 ton 150 - 350
BVC-125-RSS 671200-Y-RSS 1,315“-7“ 125 ton 150 - 500
BVC-150-RSS 671500-Y-RSS 1,315“-7“ 150 ton 150 - 500
BVC-200-RSS 672000-Y-RSS 2 3/8“-7 5/8“ 200 ton 150 - 500

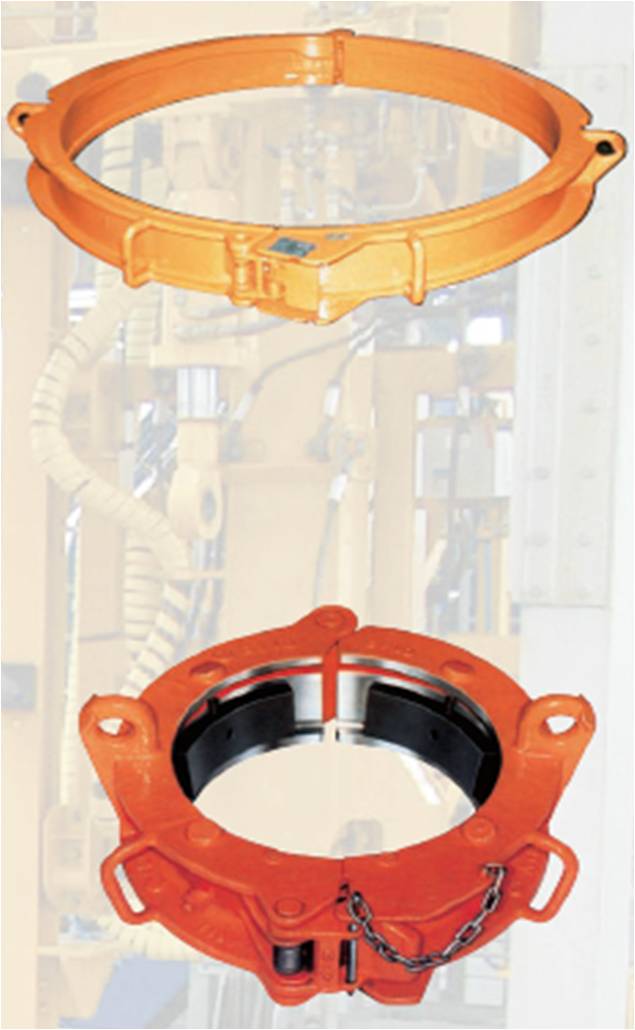

Elevador para una junta SJS
4 tons 2.3/8“ - 4“
4 tons 4“ - 6“
5 tons 6.1/2“ - 9.5/8“
5 tons 9.5/8“ - 12.3/4“
5 tons 13“ - 16“
6 tons 16.3/4“ - 20“
6 tons 22“ - 30“
6 tons 30“ - 36“
6 tons 36“ - 42“
Elevador para una junta SJD 18° cónico
6 tons 2.7/8“ - 5.7/8“
6 tons 6.1/4“ - 9“
Elevador para una junta SJ
2,5 tons 2.3/8“ - 5.1/2“
3 tons 3.1/2“ - 7.3/4“

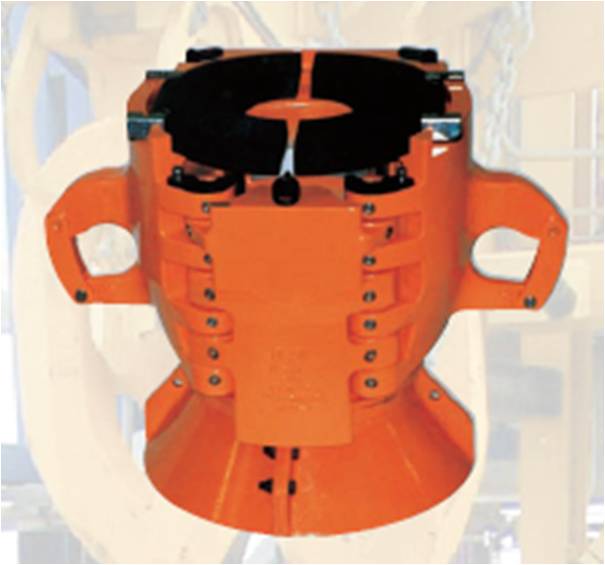

Elevador Araña BVE / S-250 2.3/8“ - 7.5/8“ 250 metric ton
Elevador Araña BVE / S-350 4.1/2“ - 14“ 350 metric ton

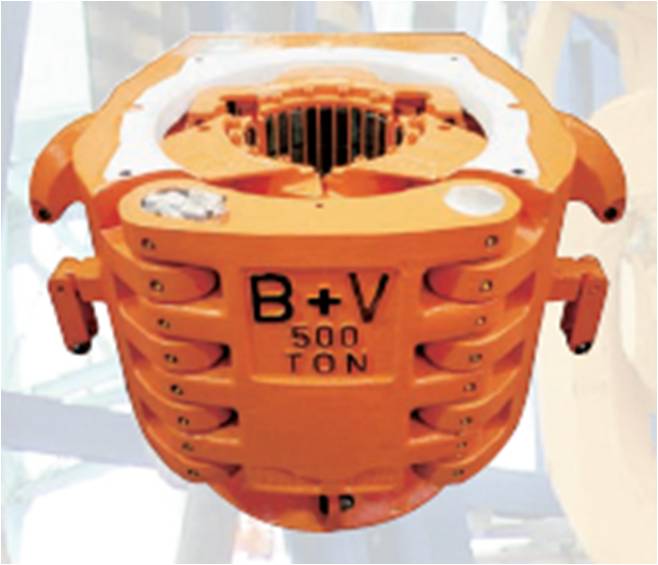

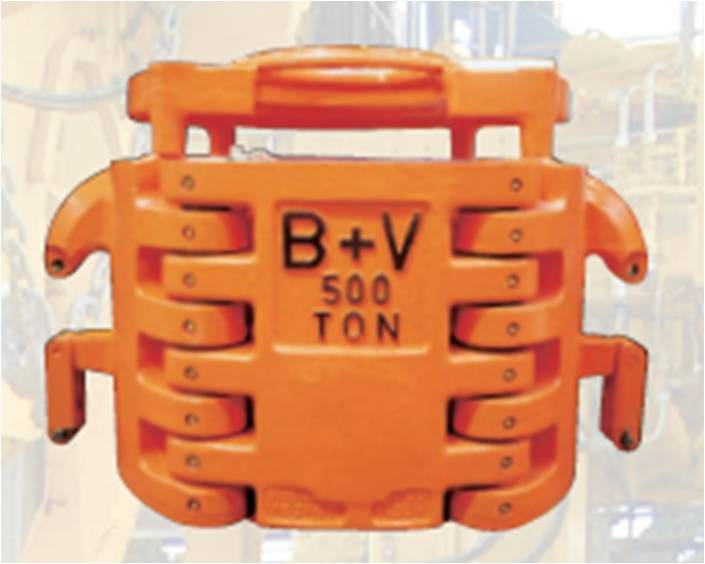

Elevador Araña BVE / S-500 4.1/2“ - 14“ 500 ton
Elevador Araña BVE / S-500 12.3/4“ - 24.1/2“ 500 ton

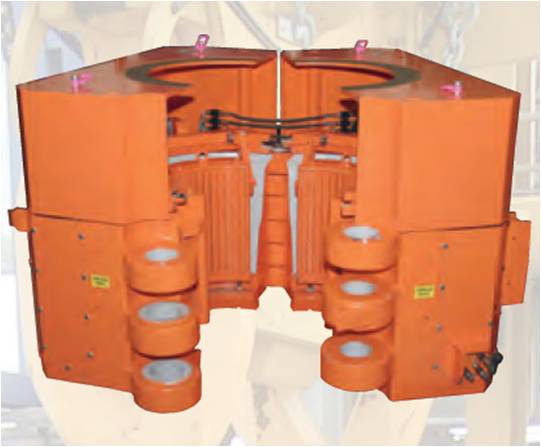

Elevador Araña BVE / S-750 4.1/2“- 14“ 750 ton
Elevador Araña BVE / S-750 16“ - 24“ 750 ton

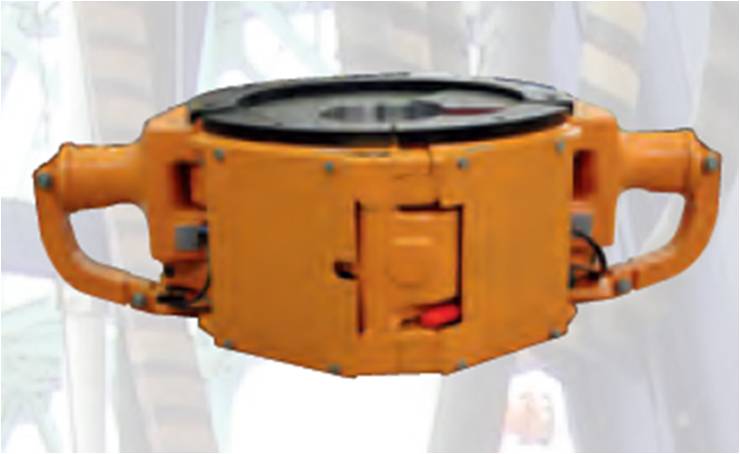

Elevador Hidráulico AMP-1250
AMP-1250/1, AMP-1250/2
5.1/2“ – 9.7/8“, 10“ – 24“
Capacidad: 1250 tons, 1250 tons

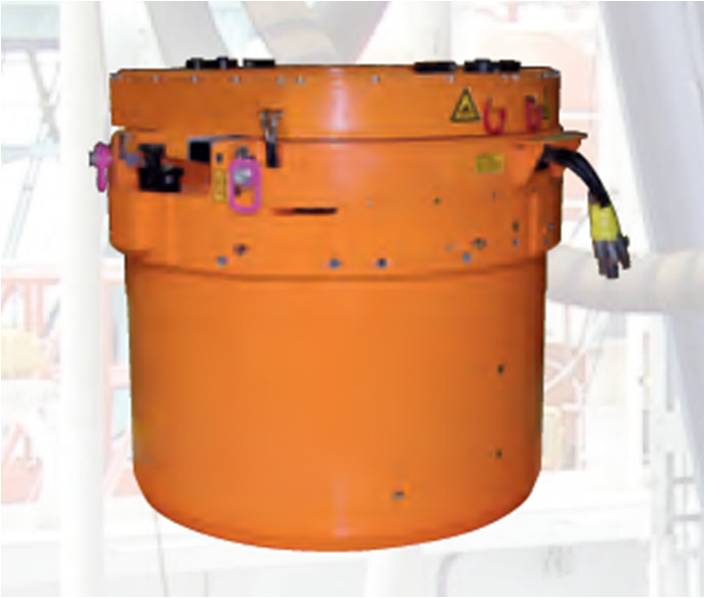

Cuña de Potencia Hidráulica PS-1250
PS-1250/1, PS-1250/2
3.1/2” – 14” 14” – 24”
Capacidad 1250 tons 1250 tons

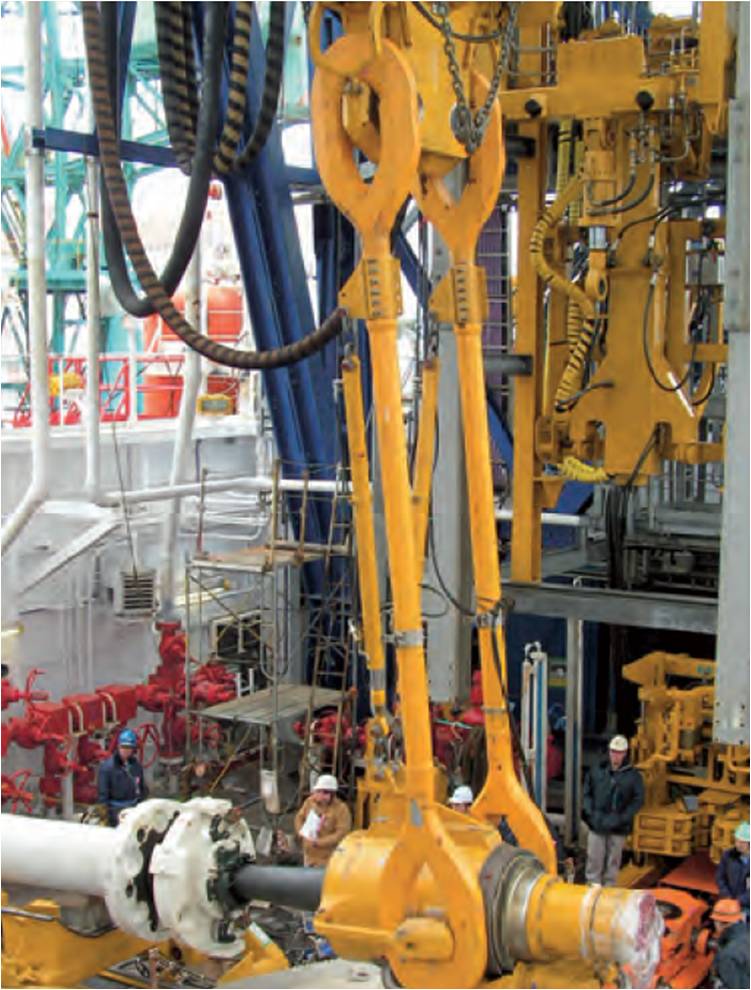

Gafas para 150 ton
Gafas para 250 ton
Gafas para 350 ton
Gafas para 500 ton
Gafas para 750 ton
Gafas para 1000 ton
Gafas para 1250 ton
Gafas para 1380 ton
Llave manual BV-25 para casing 2.3/8“ - 10.3/4“
Llave manual WRT-35para TP y casing 2.3/8“ - 11“Llave manual WRT-55 para TP y casing 3.1/2“ - 14.3/8“

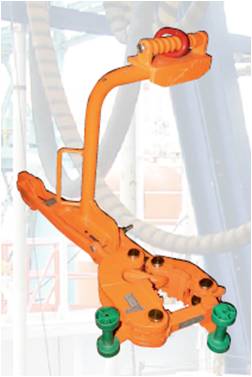

Llave manual BV-55 para Casing 13.3/8“ - 36“
Llave manual BV-65 para TP y casing 3.1/2“ - 21.1/2“
Llave manual BV-80 para TP y casing 3.1/2“ - 13.3/8“

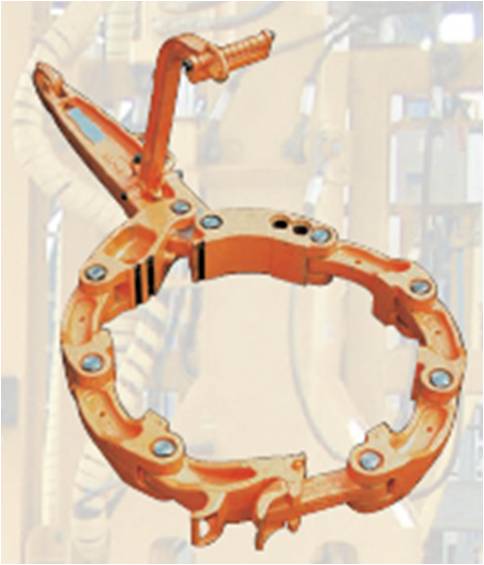

Llave Manual BV-100 para TP y casing 4“ - 21“
Llave Manual WRT-135 para TP y casing 7.1/2“ - 12“
Slip lifter HCSL-350 para Casing
20“
30“

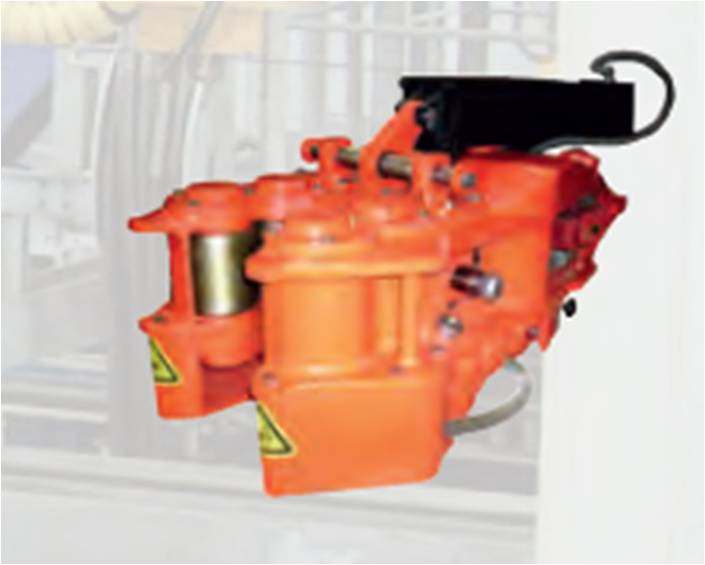

Roladora BVOT Spin3.1/2“ - 9.1/2“ 1200 lbs 250 CFM 100 1100 ft-lbs 545 kg 1490 Nm

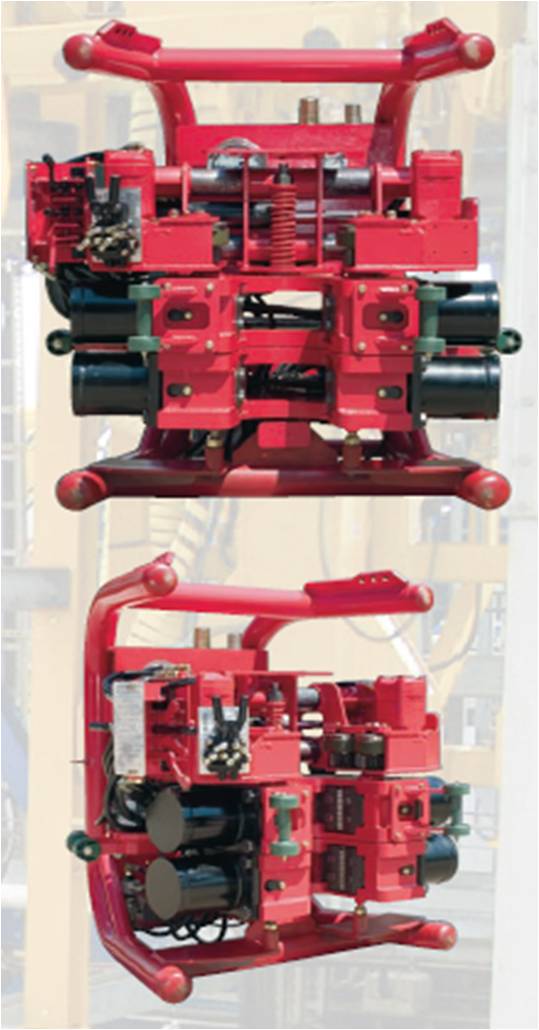

Floorhand
3 1/2“ DP - 8 1/2“ DC 65.000 Ft.Lbs. 80.000 Ft.Lbs. 2.500 PSI @ 25 GPM 3.400 Lbs.
